8-bit Computer - EEPROM Programmer <

Hover over components to see details. Click on components to open Datasheet.

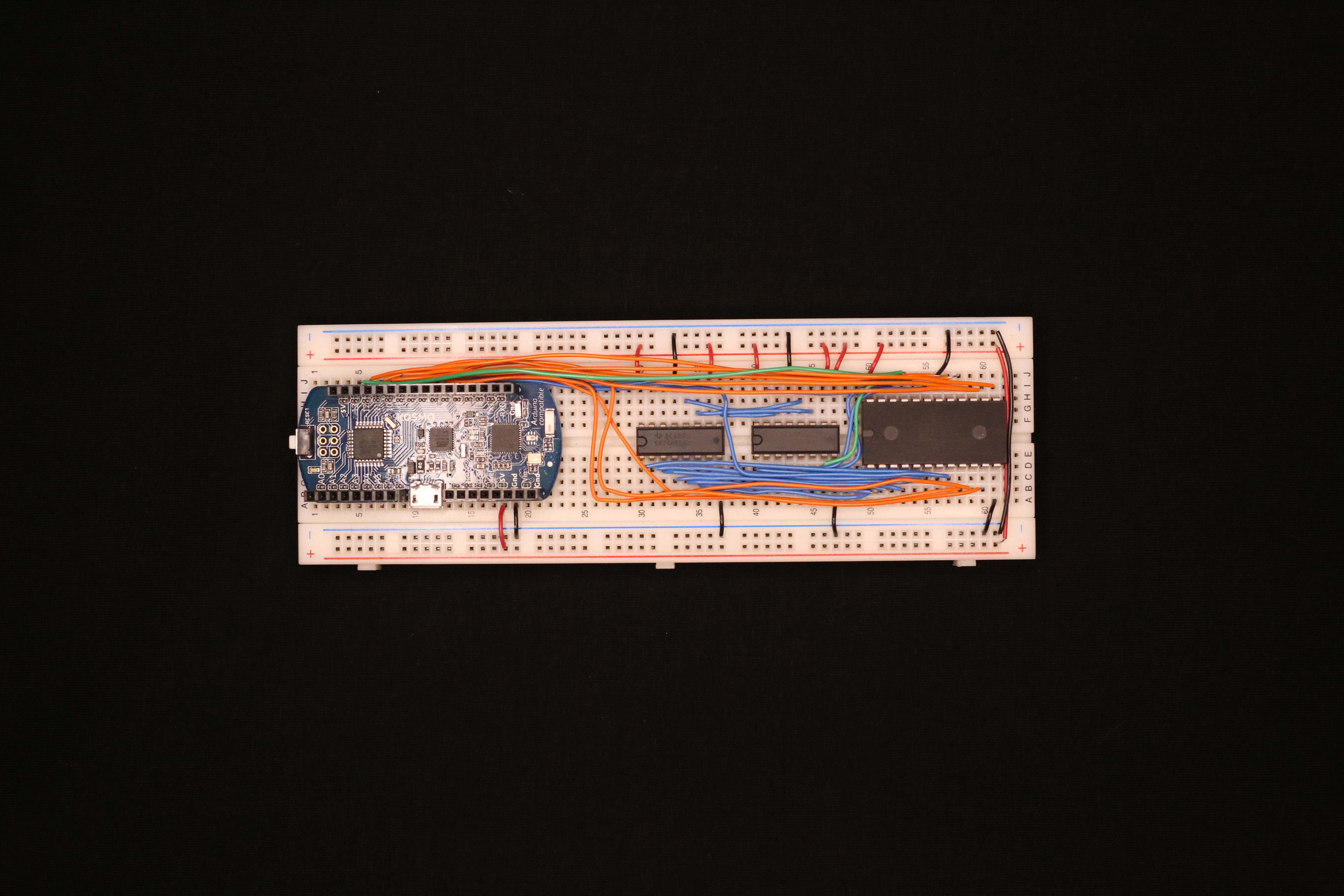

Image Full Resolution 5472x3648

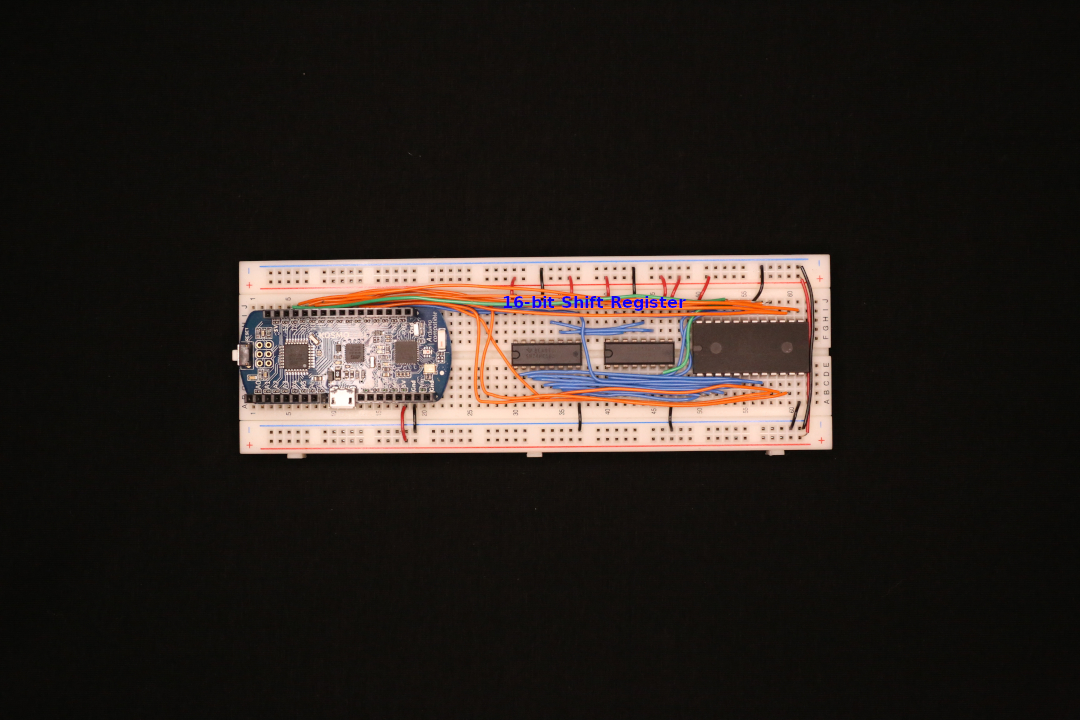

Arduino EEPROM programmer

To program the two Microcode EEPROMs, we use an Arduino program. Both EEPROMs are programmed with the same program.
